Geyser (Bedrock)

Geyser is a protocol bridge that lets Bedrock Edition players join a Java Edition server. With Infinity-Filter in front, both Java (TCP) and Bedrock (UDP) traffic are filtered before reaching your backend.

Why Bedrock needs a dedicated IP

Bedrock’s UDP packets only carry the client IP — they don’t include the connected hostname. Domain-based filtering is impossible the way it is for Java, so each Bedrock setup needs a unique IP to be unambiguously identified at the edge.

Step 1 — Order a dedicated IP

Follow the Dedicated IP order flow. You receive a CNAME of the form <uid>.ip.infinity-filter.com — that’s what you’ll use for both DNS and the module backend.

Step 2 — Add the Geyser module backend

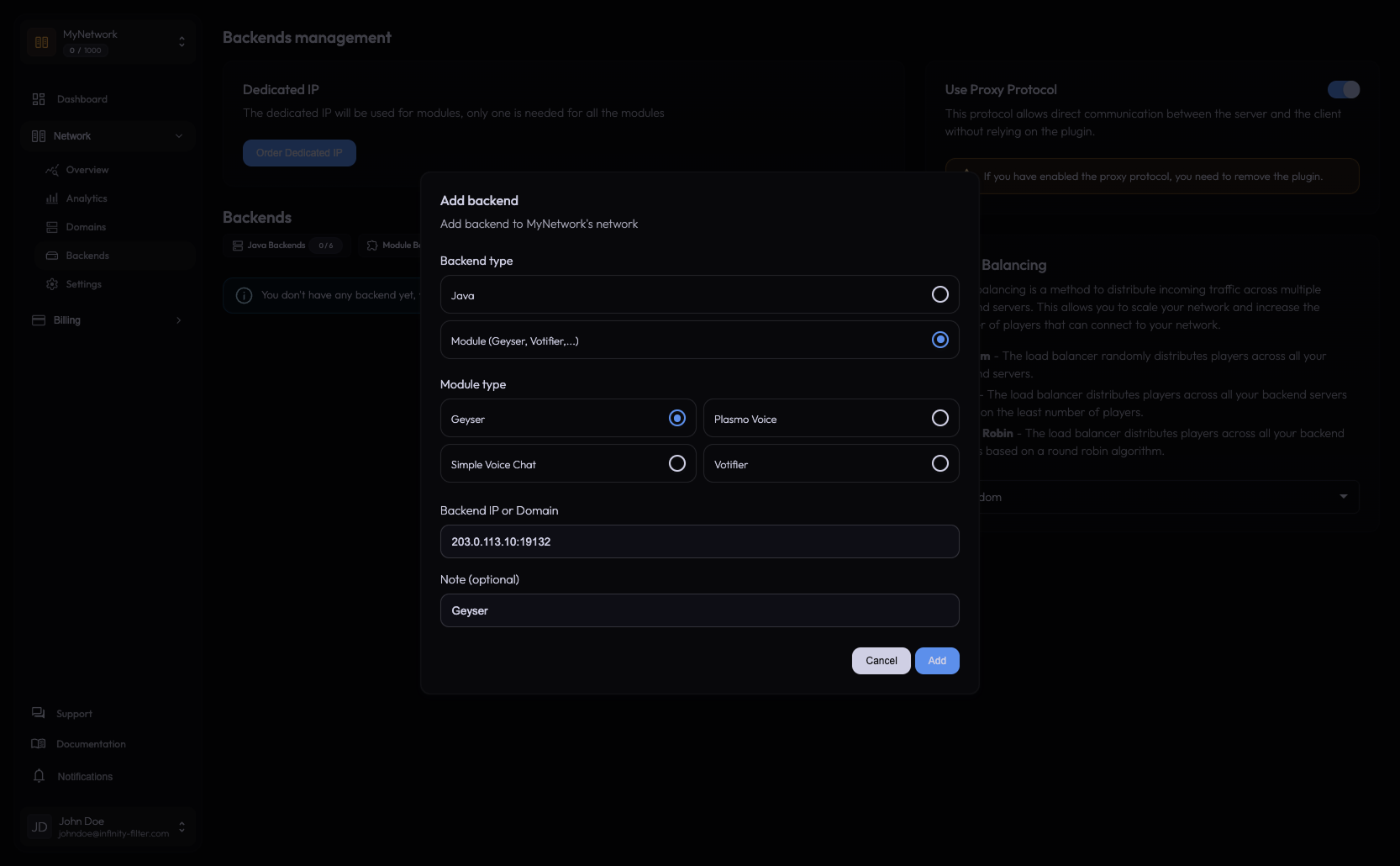

On Network → Backends, click Add backend → pick Geyser in the type dropdown.

Two things to know:

• Bedrock load balancing is not supported. A network can have one Geyser module forwarding to one backend.
• Multi-proxy setups need Geyser on every proxy. If only one of several proxies has Geyser installed, Bedrock players routed to the other will fail to connect.

Step 3 — DNS

Create a CNAME on a Bedrock-conventional subdomain (bedrock, mobile, be or mcpe) pointing at the dedicated CNAME. Cloudflare orange-cloud OFF.

bedrock.example.com.   300   IN   CNAME   {uid}.ip.infinity-filter.com.

No SRV needed. Don’t add this subdomain in the panel’s Domains table — Bedrock subdomains aren’t added there. See DNS setup for the full reference.

Step 4 — Configure Geyser

The PROXY-protocol options in Geyser are confusing because three distinct knobs exist with overlapping names. With Infinity-Filter the correct mapping is:

Sample configs

remote:
  address: {java-backend-ip-or-localhost}
  port: {java-backend-port}
  auth-type: floodgate   # or online / offline
  use-proxy-protocol: true

bedrock:
  address: 0.0.0.0
  port: {geyser-udp-port}
  enable-proxy-protocol: false
  # proxy-protocol-whitelisted-ips: [ "{IF-range-1}", ... ]   # optional if OS-level firewalling isn't possible

advanced:
  bedrock:
    use-haproxy-protocol: true
  java:
    use-haproxy-protocol: true

haproxy-protocol-whitelisted-ips:
  - "{IF-range-1}"
  - "{IF-range-2}"

Step 5 — (Standalone Geyser only) Infinity-Filter plugin

If Geyser runs as a standalone process (not as a plugin), and you’re using the Infinity-Filter forwarding plugin instead of PROXY protocol, enable Geyser support in the plugin config:

allow-external-connections: true
geyser-support: true

If you’re using PROXY protocol, this section doesn’t apply.

Step 6 — Floodgate

Floodgate goes on the proxy only, never on backend servers. It allows Bedrock players to authenticate without a Java account; the proxy handles the bridge.

Key facts

Diagnostic recipes

”Header length exceeds allowed maximum” on Geyser

The PROXY header isn’t being accepted. Check haproxy-protocol-whitelisted-ips includes the IF ranges and the Geyser version supports the header.

Bedrock cannot connect, Java still works

After enabling PROXY protocol or after a dedicated-IP migration:

• bedrock.enable-proxy-protocol is true (conflicts with IF). Set it to false.
• The Bedrock CNAME still points at the old dedicated IP. Update it, allow a few minutes for DNS.

”Trouble establishing a connection to multiplayer services” through IF, direct works

One of:

• Empty haproxy-protocol-whitelisted-ips while advanced.bedrock.use-haproxy-protocol: true. Whitelist IF ranges.
• Backend firewall blocking UDP 19132 from IF ranges. Allow them.
• Stale Geyser backend module. Delete and re-add the Geyser module backend in the panel — this clears silent routing inconsistencies where the tunnel looks up but no UDP forwards.

End-to-end Bedrock real-IP not visible on the Java backend

Check all three layers: use-haproxy-protocol: true in advanced.bedrock AND advanced.java, PROXY protocol on Velocity/BungeeCord, PROXY protocol on the IF Backends page.

Geyser startup warns about HAProxy protocol expected

use-haproxy-protocol set incorrectly in advanced. Set advanced.bedrock.use-haproxy-protocol: false (IF does not send HAProxy headers to the Geyser UDP listener by default). Set advanced.java.use-haproxy-protocol: true only if PROXY protocol is enabled on Velocity/BungeeCord.

Bedrock module suddenly stopped after a subscription renewal

Billing has been observed to wrongly flag the dedicated IP for cancellation during renewal. The dedicated IP needs to be re-enabled platform-side — open a ticket.
